1. Product overview:

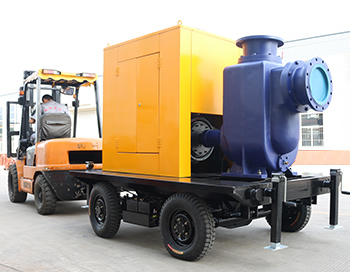

　XBC-ZW mobile diesel self-priming pump, a professional diesel suction pump for typhoon and flood prevention in urban mobile rescue and drainage. It integrates self-priming and non-clogging sewage discharge. It adopts diesel engine to drive the axial backflow and external mixing type. Through the unique design of pump body and impeller flow passage, it does not need to install bottom valve and water irrigation. The pump set can suck and discharge liquids containing large particles of solids and long fiber impurities, and is widely used in municipal sewage and waterlogging prevention projects, agricultural irrigation, etc. The pump set has the characteristics of simple structure, good self-priming performance, strong sewage discharge capacity, high efficiency and energy saving, convenient use and maintenance, integrated or outdoor movable design.

　XBC-ZW mobile diesel engine self-priming pump, flexible and maneuverable; the equipment integrates driving power, which can be used for assault flood drainage in areas without power supply. When the equipment arrives at the site, the installed control system can be used to start the engine to drive the pump to pump fluid, which is convenient and quick. Equipped with a lighting system to adapt to night work.

　

2. Features of XBC-ZW mobile diesel self-priming pump:

　Each set of equipment is an independent mobile, without any auxiliary engineering; mobile operation, reach at any time; high displacement or long-distance transportation; single person installation and operation in a short time; no additional power supply and lifting equipment; no complicated maintenance.

　

3. Scope of application of XBC-ZW mobile diesel engine self-priming pump:

　Areas without power source; surprise flood prevention and drainage; drought relief; agricultural irrigation and aquaculture; various temporary pumping occasions; cofferdam pumping industry, municipal drainage.

　The main supporting products of the whole system: diesel engine and large flow pump.

　

4. Technical requirements for XBC-ZW mobile diesel engine self-priming pump:

　Drive: Electric start diesel engine, equipped with fuel gauge and oil alarm device;

　　 (1) There is no need to vacuum and use other methods to assist pumping. After the pumping pipe is extended into the required pumping place, the pump can be directly started and drained quickly.

　　 (2) Adopt a cartridge mechanical seal, the mechanical seal adopts independent lubrication and cooling cavity, the cooling cavity adopts oil lubrication, and the cooling cavity maintains a pressure of 2bar;

　　 (3) The axis deviation shall not be greater than 0.003 mm;

　　 (4) The thick shaft of the rotary pump adopts a stepless design, and the diameter shall not be less than 85 mm, which reduces the deviation of the shaft and prolongs the service life;

　　(5) The pump ensures that the rotor runs for a long time under the rigid supports at the two ends, and the supports at the two ends are equipped with mechanical seals to ensure that the bearings do not contact the conveying materials. Ensure that the shaft does not deviate and reduce the wear of the rotor and related parts.

　　Pumping capacity: ordinary plastic bags, textile bags, mud, hair and other sundries can be smoothly drained without blocking the pump body;

　　Pipe fittings: imported metal skeleton rubber pipe, outlet hose, and quick connector; (length according to user requirements)

　　Pump truck: adopts 4-wheel or 2-wheel alloy steel chassis frame, hard steel soundproof cover, and is equipped with trailer frame;

　　Control system: adopts integrated panel for centralized control.



5. Technical parameters of XBC-ZW mobile diesel engine self-priming pump:
